| Ship Particulars ” M/V AMBASSADOR S “ | |||||||||
| PORT of REGISTERY | PANAMA | IMO NO | 9006344 | CALL SIGN | 3FWNZ | ||||
| MMSI : 372182000 | OFFICIAL NO : 53167-PEXT | FBB : 00870 | |||||||
| MAIN PARTICULARS | |||||||||
| Classification | POLSKI REJESTR STATKOW | Length Overall (LOA) | 87,86 m | ||||||
| Class Notation | KM GENERAL CARGO SHIP E AUT | Length Between Perpendicular (LBP) | 81.83 m | ||||||
| Breadth | 12,80 m | ||||||||
| Built Yard | PEENE-WERFT, WOLGAST/GERMANY | Depth Moulded | 7,10 m | ||||||
| Built Year | 1994 | Draught Summer | 5,468 m | ||||||
| DOC / ISM / ISSC | PHOENIX REGISTER OF SHIPPING | Draught Winter | 5.353 m | ||||||
| Gross Tonnage | 2449 mt | Bunkers Capacity | 122,80 cbm | ||||||
| Net Registry | 1380 mt | Bunkers Consumption | 3,50 mt | ||||||
| Light Ship | 1193 mt | Light Ship without Bulkheads | 1163 mt | ||||||

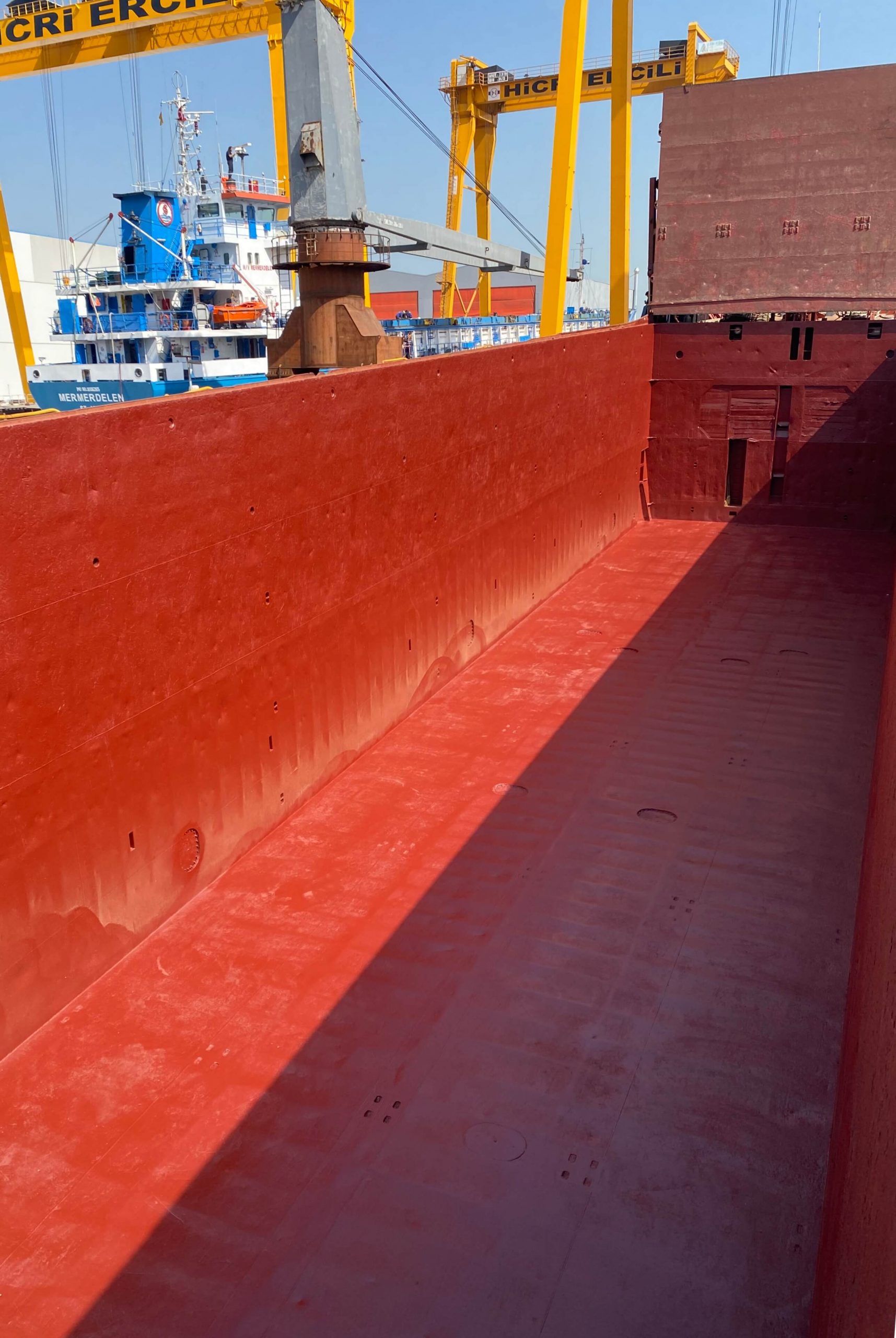

| HOLD / CARGO CAPACITY | |||||||||
| Hold (without bulkheads) | L 56.55m x w 10.2m x h 8.13m | Full Loaded Displacement | 4597 mt | ||||||
| Hold (with bulkheads) | L 55.6m x w 10.2m x h 8.13m | DW Summer | 3712.6 mt | ||||||
| 2 Grain Bulkhead = 1 Tween Deck Hatch Cover | DW Winter | 3590 mt | |||||||
| Bulkhead cap.weight | 30cbm/1060cbft/13mt | TPC at Summer LoadLine | 10 t/cm | ||||||
| Volume of both bulkheads | appr.61 m3 | FW Allowance | 115 mm | ||||||
| Hatch Dimension 56,50 m x 10,20 m light opening | |||||||||
| Grain Capacity with Bulkheads | 4635 cbm / 165536 cbft | Container Capacity | 108 TEU / 48 FEU + 12 TEU | ||||||
| Bale Capacity with Bulkheads | 4690 cbm/ 165632 cbft | Height deck – hatchcoaming | 2254 mm | ||||||
| Hatch Cover | |||||||||
| Tank Top Strenght | 15 tons/square m. | 72 TEU / 32 FEU + 8 TEU | |||||||
| AIR DRAFT – FROM THE KEEL | |||||||||
| AFT-with mast | 23,97 m | without mast | 17,52 m | ||||||
| FORE – with aerial | 22,57 m | without aerial | 18,52 m | ||||||
| TANK CAPACITIES | |||||||||
| Marine Gas Oil | 122,80 cbm | Sludge Capacity | 4,6 cbm | ||||||
| Ballast Water (1.025) | 1641,961 cbm | Bilge Water | 8,79 cbm | ||||||
| Fresh Water | 56,7 cbm | Sewage Capacity | 5,64 cbm | ||||||
| Lub oil | 6,85 cbm | Garbage Capacity | 1,70 cbm | ||||||
| MAIN / AUX. ENGINES / POWER SUPPLY | |||||||||
| M/E DEUTZ MWM SBV 8M628 | 600 kw / 800 rpm | EMG. A/E DEUTZ F5L 413FR | 68 Kw / 1500 rpm | ||||||
| A/E DEUTZ TDB V6 | 182 kw / 1500 rpm | Ballast Pump ALLWEIEER AG GERMANY NAM 100-250 U3 DN3 X 2 PCS | 160 t/h | ||||||
| A/E DEUTZ TDB V6 | 182 kw / 1500 rpm | Bow-Truster SCHOTTEL SPRAY STT-170LK | 184 Kw / 250 hp | ||||||
| INSURANCE | |||||||||
| P&I | THOMAS MILLER SPECIALTY | HULL & MACHINERY | ANADOLU SİGORTA A.Ş. | ||||||
| MISCELLANAUS | |||||||||
| Anchors (Port / Stb) | 8 / 7 shackles | Speed | 10,5 knot | ||||||
| Fix propeller / Gearbox | Right-Handed / 252 RPM | Rudder Type | Becker Rudder | ||||||
